Converting Uwatec's Aladin 2G JTrak logs to MacDive

General MacDive discussion, updates, etc.
Post Reply
Posts: 1
Joined: Thu Dec 17, 2020 11:40 pm
Dive Computer: Suunto Vyper Novo

Converting Uwatec's Aladin 2G JTrak logs to MacDive

Post by claudio »

Hi everyone,

I did my OW and AOWD with the dive shop's rental equipment, inc. computer. Unfortunately they only had the ancient Uwatec/Scubapro Aladin 2G, and the IrDA drivers only work on older Windows versions (I borrowed a friend's computer). I couldn't get SmartTRAK to work, but JTrak did. And unfortunately JTrak2XML didn't work. So I'm sharing the converter I wrote.

1. Export your JTrak logs to Excel XLS
2. Prepare your logs. Delete beginning/end rows that you don't want as part of your graph/dive length, and *rename* your sheets to include the date, the time currently must be split with an *_* instead of a *:*. If you used Numbers, you must export the sheets again as an Excel 2003 file (XLS).

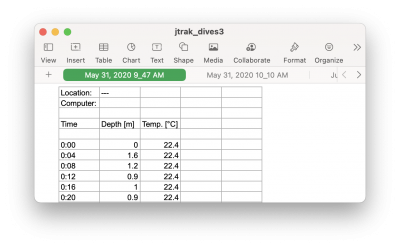

Screen Shot 2020-12-17 at 4.18.42 PM.png
3. Install the script:

Code: Select all

git clone
cd JTrakToMacDive
pip install pandas lxml
python path_to.xls
4. You should have an output.xml file in the same folder that you can open in MacDive.

I still recommend JTrak2XML if you can get it to work, but I couldn't.

Hope this is useful to someone.
User avatar
Site Admin
Posts: 4351
Joined: Sat Apr 12, 2008 8:33 am
Dive Computer: Shearwater Teric

Re: Converting Uwatec's Aladin 2G JTrak logs to MacDive

Post by nick »

This is super cool!
